We have entered an era in which being recognized as an environmentally responsible corporate citizen has taken utmost importance. Even when selecting air conditioners, a new model featuring HFC R-410A refrigerant could be the perfect step in promoting your corporate image.
| Model name | 8.3 TR | 10 TR | 13.3 TR | 15.0 TR | 16.7 TR | ||

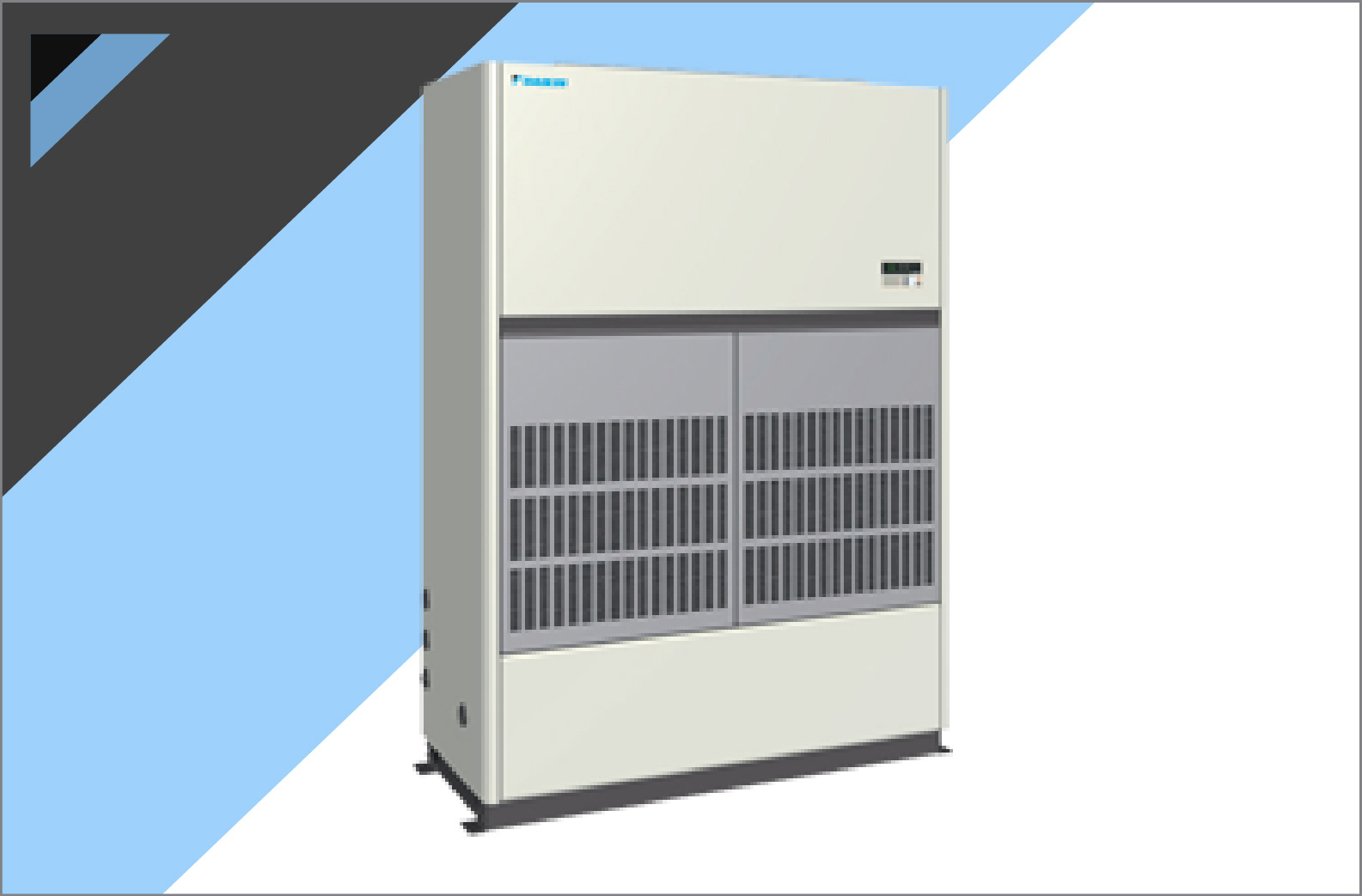

| Indoor unit | FVPGR10NY1 | FVPGR13NY1 | FVPGR15NY1 | FVPGR18NY1 | FVPGR20NY1 | ||
| Outdoor unit | RUR10NY1 | RUR13NY1 | RUR15NY1 | RUR18NY1 | RUR20NY1 | ||
| Power supply | 380-415 V, 50 Hz, 3 Phase, 4 Wires | ||||||
| Cooling capacity 1,3 | kW | 29.3 | 35.2 | 46.9 | 52.8 | 58.6 | |
| Btu/h | 100000 | 120000 | 160000 | 180000 | 200000 | ||
| kcal/h | 25200 | 30200 | 40300 | 45400 | 50400 | ||
| Running current | A | 19.2 | 24.3 | 29 | 34.6 | 40.4 | |
| Power consumption 1 | kW | 11.4 | 14.9 | 17.8 | 21.2 | 24.8 | |
| Starting current | A | 129.5 | 118 | 130.3 | 143.4 | 146.3 | |
| Power factor | % | 85.7 | 88.5 | 88.6 | 88.4 | 88.6 | |
| Indoor unit | |||||||
|---|---|---|---|---|---|---|---|
| Colour | Ivory White | ||||||
| Air Flow rate (H) | m3/min | 80 | 120 | 120 | 162 | 162 | |
| cfm | 2830 | 4240 | 4240 | 5720 | 5720 | ||
| Fan | Drive | Belt Drive | |||||
| Ext. Static Pressure | (mmH2O) | 15 | |||||
| Sound level 2 | dBA | 61 | 62 | 62 | 63 | 63 | |
| Dimensions (HxWxD) | mm | 1,740x1,170x510 | 1,870x1,170x720 | 1,870x1,170x720 | 1,870x1,470x720 | 1,870x1,470x720 | |
| Machine weight | kg | 150 | 180 | 180 | 240 | 240 | |
| Operation range | °CWB | 14 to 25 | |||||
| Outdoor unit | |||||||
| Colour | Ivory White | ||||||
| Compressor | Type | Hermetically sealed scroll type | |||||
| Motor output | kW | 9 | 5.0+5.0 | 6.7+6.7 | 7.5+7.5 | 9.0+9.0 | |
| Refrigerant oil | Model | Refer to the name plate of compressor | |||||
| Charge | L | 3.3 | 5 | 6.5 | 6.5 | 6.5 | |
| Refrigerant charge (R-410A) | kg | 6.0 (Charged for 7.5 m) | 4.5 (Charged for 7.5 m) | 8.0 (Charged for 7.5 m) | 8.0 (Charged for 7.5 m) | 8.0 (Charged for 7.5 m) | |
| Sound level 2 | 380V | dBA | 61 | 61 | 62 | 63 | 63 |
| 415V | dBA | 62 | 62 | 63 | 64 | 64 | |
| Dimensions (HxWxD) | mm | 1,680x930x765 | 1,680x1,240x765 | 1,680x1,240x765 | 1,680x1,240x765 | 1,680x1,240x765 | |
| Machine weight | kg | 206 | 243 | 319 | 322 | 329 | |
| Operation range | °CDB | 21 to 46 | |||||
| Refrigerant Piping | |||||||
| Indoor Unit | Liquid | mm | Ø12.7 (Brazing) | Ø12.7 (Brazing) | 15.9 (Brazing) | 15.9 (Brazing) | 15.9 (Brazing) |
| Gas | mm | Ø28.6 (Brazing) | Ø28.6 (Brazing) | 34.9 (Brazing) | 34.9 (Brazing) | 34.9 (Brazing) | |
| Drain | mm | PS 1B Internal thread | |||||
| Outdoor Unit | Liquid | mm | Ø12.7 (Flare) | Ø12.7 (Flare) | Ø15.9 (Flare) | Ø15.9 (Flare) | Ø15.9 (Flare) |
| Gas | mm | Ø28.6 (Brazing) | Ø28.6 (Brazing) | Ø34.9 (Brazing) | Ø34.9 (Brazing) | Ø34.9 (Brazing) | |
| Drain | mm | - | |||||
| Max. interunit piping length | m | 50 (equivalent length 70 m) | |||||
| Max. installation level difference | m | 30 | |||||
