Superior air distribution for comfortable living
The conditioned air can be effectively distributed to every corner of the room through the ducting and this realizes a more pleasant environment for comfortable living.

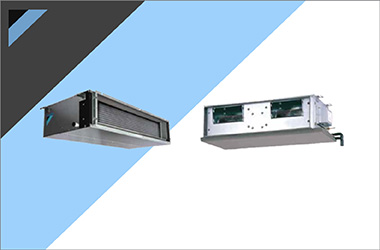

Compact design of built-in type helps blend with interior decor. Indoor models are designed in a compact size with a twin coil structure. This design is able to provide some savings in space for installation
| 5.5TR | 8.5TR | 11.0 TR | 10.8 TR | 16.5 TR | ||||
| Model | Indoor Unit | FDR65FRV 16 |
FDR100FRV 16 |
FDR130FRV 16 |
FDR130FRV 162 |
FDR200FRY 16 |
||
| Outdoor Unit | RR65FRY 16 |
FDR100FRY 16 |
RR130FRY 16 |
RR65FRY 16(2Nos) |
RR100FRY 16(2Nos) |
|||
| Nominal Cooling Capacity | Btu/Hr | 66000 | 102000 | 132000 | 129600 | 198000 | ||
| KW | 19.3 | 29.9 | 38.7 | 38 | 58 | |||
| Actual Capacity | % | Minimum 90% of Nominal Capacity | ||||||
| Nominal Total Input Power (Cooling) | W | 6400 | 11000 | 14600 | 13000 | 21600 | ||
| Running Current | A | 11 | 19 | 23 | 22 | 38 | ||
| Power Source | V/Ph/ Hz |
415/3/50 | ||||||
| Refrigerant Type | - | R-410A | ||||||
| Indoor unit | ||||||||
|---|---|---|---|---|---|---|---|---|
| Control | Operation | - | Wired Control | |||||
| Air Flow | High | cfm | 2200 | 3400 | 4400 | 4400 | 6600 | |
| Medium | cfm | 2045 | 3100 | 3850 | 3850 | 5800 | ||
| Low | cfm | 1890 | 2800 | 3330 | 3330 | 5000 | ||
| Static Pressure | High | Pa | 50 | 50 | 60 | 60 | 80 | |
| Sound Pressure Level (H) | dBA | 51 | 52 | 54 | 54 | 59 | ||
| Unit Dimension | Height x Width x Depth |
mm | 450x1170 x700 |
450x1660 x700 |
470x1700 x940 |
470x1700 x940 |
590x1885 x1145 |
|
| Packing Dimension | Height x Width x Depth |
mm | 465x1370 x720 |
585x1880 x740 |
620x1930 x990 |
620x1930 x990 |
755x2130 x1250 |
|
| Unit Weight | kg | 60 | 95 | 125 | 130 | 175 | ||
| Condensate Drain Size | mm | 40.5 | ||||||
| Outdoor unit | ||||||||
| Unit Dimesion | Height x Width x Depth |
mm | 930x1025 x410 |
930x1200 x550 |
930x1650 x620 |
930x1025 x410 |
930x1200 x550 |
|
| Packing Dimension | Height x Width x Depth |
mm | 1080x1170 x470 |
1080x1350 x620 |
1088x1846 x720 |
1080x1170 x470 |
1080x1350 x620 |
|
| Unit Weight | kg | 96 | 147 | 173 | 96 | 147 | ||
| Pipe Connection |
Type | - | Liquid (Flared) & Gas (Brazed) | |||||
| Size | Liquid | mm | 12.7 | 12.7 | 15.9 | 12.7 | 12.7 | |
| Gas | mm | 22.2 | 28.6 | 28.6 | 22.2 | 28.6 | ||
| Refrigerant Pre-Charged (At 7.5m Pipe Length) |
kg | 4.4 | 5.7 | 8 | 2X4.4 | 2X5.9* | ||
