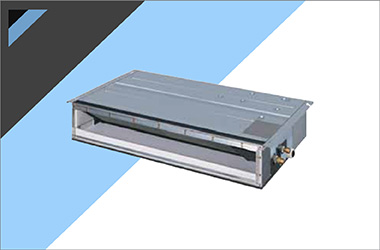

Daikin FD-DSV Series Ductable AC in Gurgaon

Daikin FD-DSV Series Ductable AC in Gurgaon

Superior air distribution for comfortable living. The conditioned air can be effectively distributed to every corner of the room through the ducting and this realizes a more pleasant environment for comfortable living. The compact design of the built-in type helps blend with interior decor Indoor models are designed with compact size with a twin coil structure. This design is able to provide some savings in space for installation.

  • Descripton
Model 5.5 TR 8.5 TR 11.0 TR 16.7 TR
Indoor Unit FD65DSV16 FD100DSV16 FD130DSV16 FD200DSY16
Outdoor Unit R65DSY16 R100DSY16 R130DSY16 R100DSY16x2
Capacity Btu/h 66000 102000 132000 200000
kW 19.34 29.9 38.7 58.6
Total Input Power W 6450 9500 13000 19510
Running Current A 11 17 22 33
Power Source V/Ph/Hz 415 / 3 / 50
Refrigerant Type - R-22
Indoor unit
Control Operation - LCD Wired Controller
Air Flow High cfm 2200 3400 4400 6600
Medium cfm 2045 3100 3850 5800
Low cfm 1890 2800 3330 5000
High Pa 50 50 60 80
Sound Pressure Level dBA 53 53 57 59
Unit Dimension Height mm 450 450 470 590
Width mm 1170 1560 1700 1885
Depth mm 700 700 940 1145
Packing Dimension Height mm 465 585 620 755
Width mm 1370 1780 1930 2130
Depth mm 720 740 990 1250
Unit Weight kg 60 90 128 175
Condensate Drain Size mm 40.5
Outdoor unit
Unit Dimesion Height mm 930
Width mm 1025 1200 1650 1200
Depth mm 410 550 620 550
Packing Dimension Height mm 1080 1080 1088 1080
Width mm 1170 1350 1846 1350
Depth mm 470 620 720 620
Unit Weight kg 95 144 160 144
Pipe Connection Type Brazed
Size Liquid mm 12.7 12.7 15.8 12.7
Gas mm 22.4 28.58 34.92 28.58
Refrigerant Pre-Charged
(At 7.5m Pipe Length)		 kg 4.2 6 8.7 6.0 (x2)
